224B Bevelmaster

224B Bevelmaster

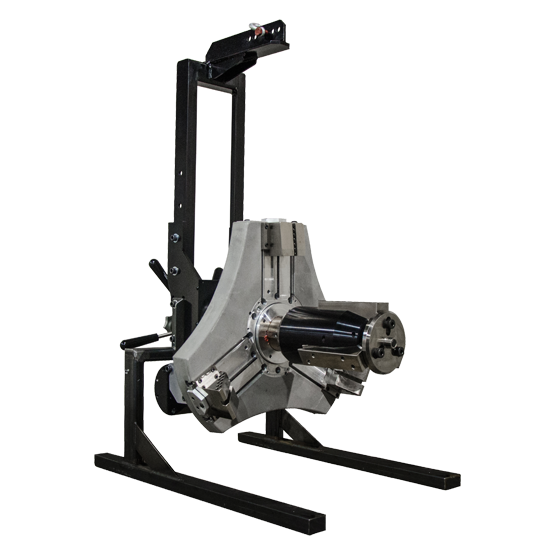

The extremely rugged and dependable Model 224B BEVELMASTER™ portable ID mount pipe beveling machine tool is ideal for beveling, facing and/or counterboring on larger pipe. The tool is configured with an in-line feed knob and two-speed pneumatic drive motor at a right angle to the lathe head. The Model 224B System pipe beveling machine comes complete with (3) tool holder assemblies, mandrel assemblies, mandrel head assemblies (3 jaws), upper lifting frame (floor stand available as an option), pneumatic motor assembly wrench kit and operator’s manual. This is the new standard of precision in larger diameter beveling.

Pipe/Tube Size: 6.813″ – *42.000″ (173.0 mm – *1066.8 mm)
Wall Thickness: **2.340″ (59.4 mm) max
Drive Options: Air
Hydraulic

Fact Sheet
Request Information
