301SP
301SP - Image 2
301SP - Image 3

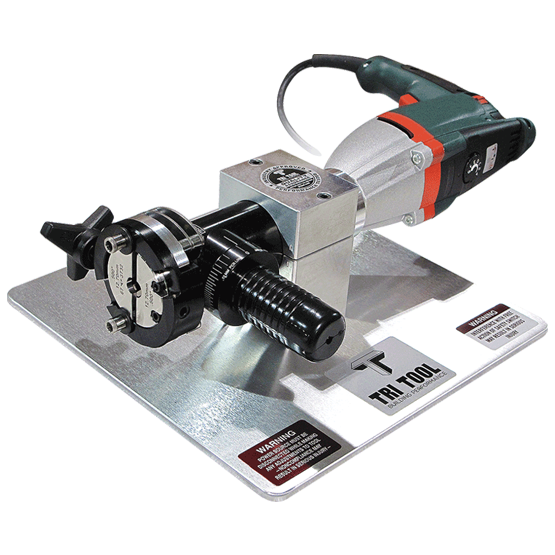

301SP

The machine’s 1/8″ to 1.125″ OD (3.18 mm to 28.6 mm) tubing and fittings with minimum grip length. Size-specific saddles and clamp assemblies hold the fabricated fittings to machine the ends flat and square with minimal to no burrs on either the ID or OD of the tube. The grip length of the standard series saddle sets is 0.625″. Short perch saddle sets for fittings with a minimum straight have a grip length of .188″. The Cam Feed incorporates a graduated scale to indicate tool bit travel.

Pipe/Tube Size: *0.125″ – 1.125″ (*3.2 mm – 28.6 mm)
Wall Thickness: 0.125″ (3.2 mm) max
Drive Options: Air

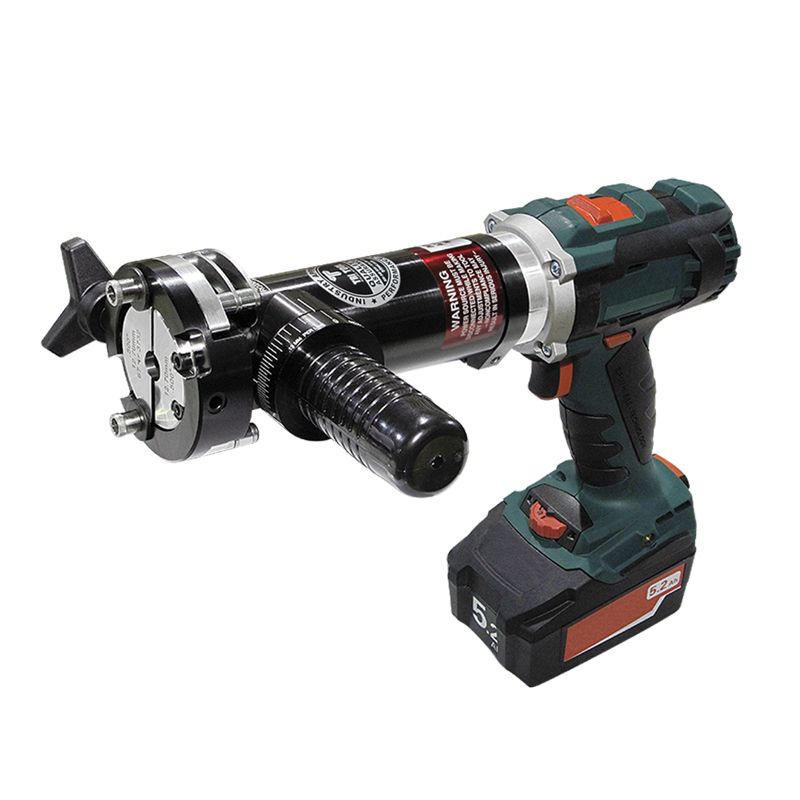

18V Cordless

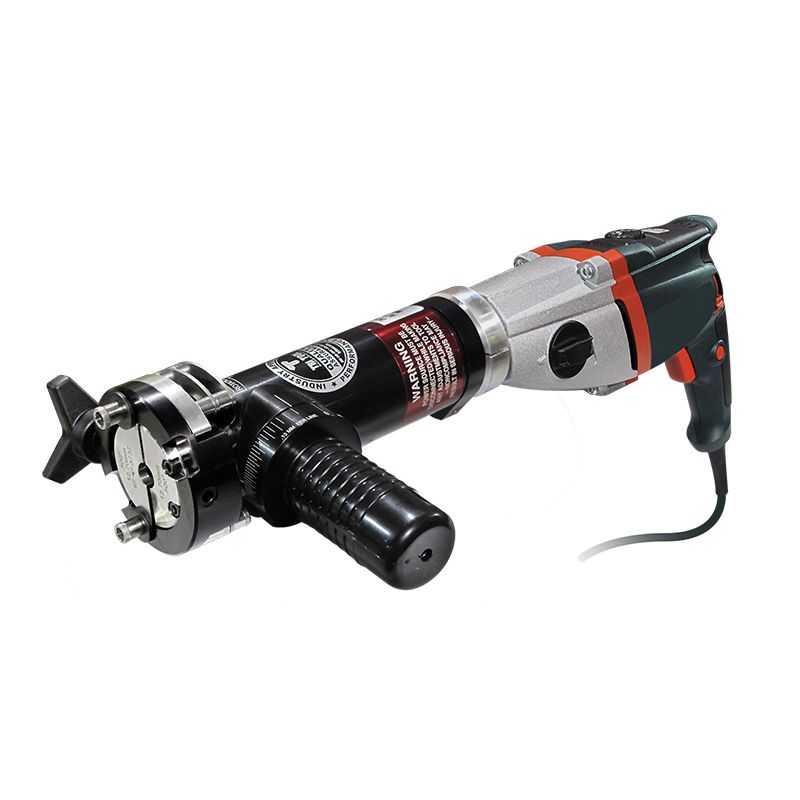

100V Electric
110V Electric
220V Electric

Fact Sheet
Request Information
