614RBL-G2

614RBL-G2

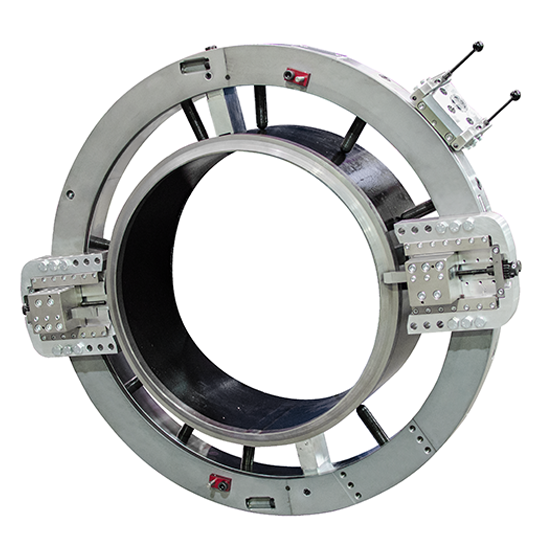

The new 600RBL-G2 series split frame lathes provide the highest degree of portability for applications where lighter weight is an important advantage. The RBL-G2 clamshells are designed to sever and bevel 7″ through 60″ in-line tube and pipe. These clamshells feature precise, lightweight Vee-track roller bearings which produce low drag, minimize weight, and maximize portability. The RBL-G2 features adjustable bearings and tool slides to ensure long and dependable operation. Simultaneous sever and bevel operations are limited only by wall thickness.

Pipe/Tube Size: ***7.000″ – 14.000″ (177.8 mm – 355.6 mm)
Wall Thickness: **2.500″ (63.5 mm)
Drive Options: Air
115V HD Electric
220V Electric
Servo
Hydraulic

Fact Sheet
