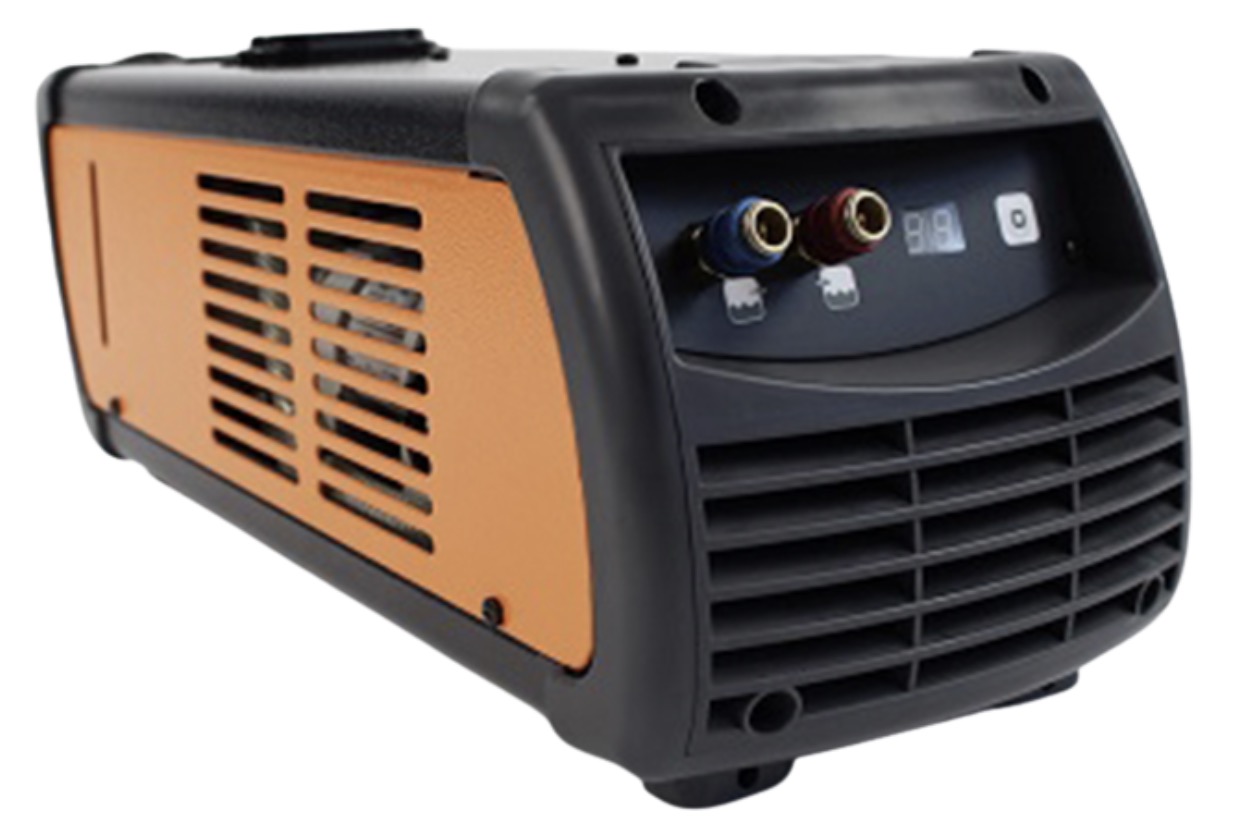

Cooler Dual

Cooler Dual

A powerful, optional add-on for the CompactDual power source, the CoolerDual ensures efficient cooling for water-cooled orbital welding heads. Compact and reliable, it boosts productivity, protects equipment, and delivers consistent welding performance, even in demanding conditions.

  • 2-Liter Reservoir: Ensures continuous cooling for extended operations.
  • Fast Water Connections: Quick and secure connections for seamless setup.
  • Smart Integration: Directly powered by the welding power source for streamlined operation.
  • Safety & Monitoring: Equipped with a water flow sensor and water safety sensor to prevent overheating and ensure smooth operation.
  • Exclusive Feature: A front display for real-time coolant temperature monitoring, providing better control over cooling performance.
  • Power supply: 48 Vdc (internal power from the power source )
  • Max input current: 3,6 A
  • Cooling power (25°C): 0,65 kW
  • Type of exchanger: Hâ‚‚O – Air
  • Nominal flow rate (QV): 3,32 l/min / 0.88 gal/min
  • Maximum flow rate (Qvmax): 8,5 l/mim / 2.25 gal/min
  • Pump type: Centrifugal
  • Maximum rpm: 3300 l/min
  • Tank capacity: 2,0 liters / 0.53 gal
  • IP Protection Rating: IP23S
  • Insulation class: F
  • Standard: EN 60974-2/EN 60974-10
  • Dimensions: 480 x 190 x 180 mm / 18.9 x 7.5 x 7.1 in
  • Weight (without coolant): 8,8 kg / 19.4 lbs
Fact Sheet
