PFM3248

PFM3248

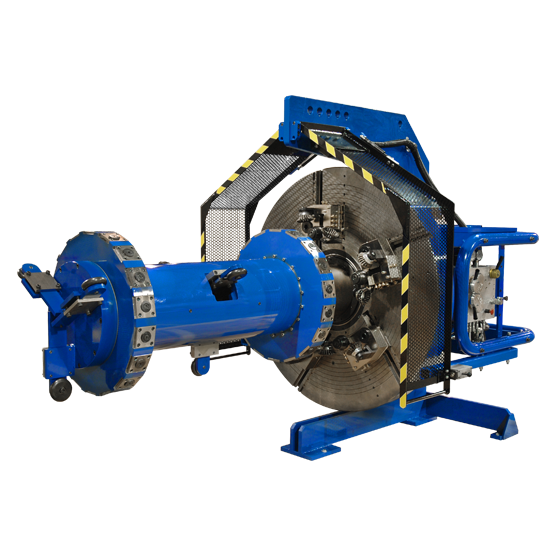

The PFM 3248 PIPEMASTER® is an ID mount machine tool for beveling, facing and/or counter-boring 32″ (812mm) to 48″ (1219mm) pipe. The tool is configured with twin hydraulic drive motors that power a helical gear train attached to the main spindle for smoother power delivery and optimal surface finish. A set of hydraulic cylinders, with rapid and slow feed control advance and feed the cutting head into the pipe. A large diameter mandrel shaft is provided for optimum stability during heavy cutting operations. Two hydraulically actuated mandrel heads with mounting pads are available, a 24″ to 32″ mounting head (avail as accessory), and the standard 32″ to 48″ mounting head.

Pipe/Tube Size: 29.500″ – 48.000″ (749.3 mm – 1219.2 mm)
Wall Thickness: 2.000″ (50.8 mm)
Drive Options: Hydraulic

Fact Sheet
