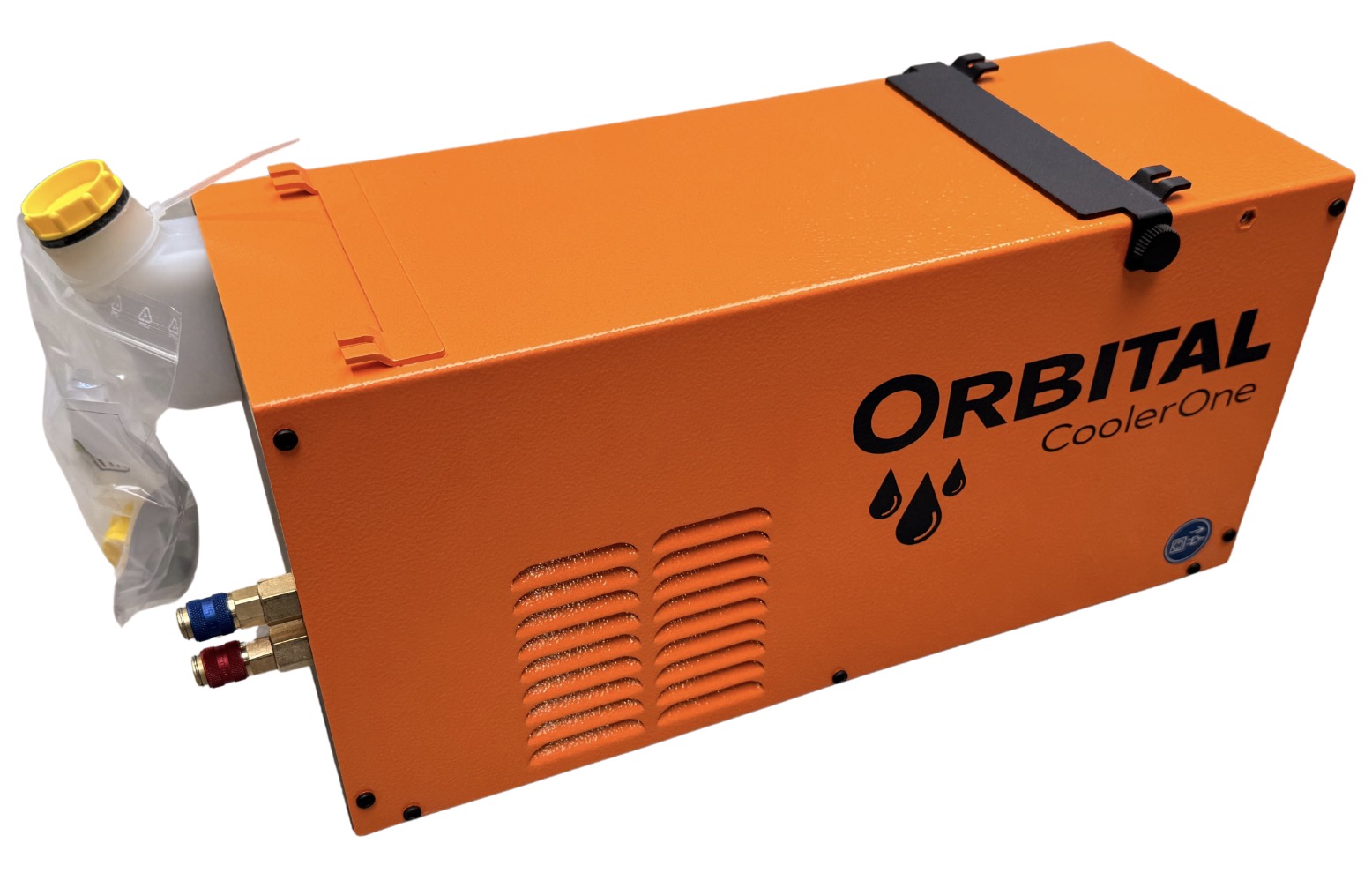

WUK 7 (CoolerOne)

WUK 7 (CoolerOne)

Designed for the CompactOne and BasicPlus power sources, the WUK 7 (CoolerOne) provides effective cooling for both closed and open water-cooled welding heads. Its compact design ensures optimal performance, longer equipment life, and high-quality welds in any environment.

  • 2-Liter Reservoir: Ensures continuous cooling for extended operations.
  • Fast Water Connections: Quick and secure connections for seamless setup.
  • Smart Integration: Directly powered by the welding power source for streamlined operation.
  • Safety & Monitoring: Equipped with a water flow sensor and water safety sensor to prevent overheating and ensure smooth operation.
  • Power supply: 230 V / 1~ 50/60 Hz (internal power from the power source)
  • Power Consumption: 0,23 KVA
  • Current Consumption: 1,0 A
  • Circuit Protection (slow-blow): 16 A
  • Type of exchanger: Hâ‚‚O – Air
  • Nominal Cooling Power: 0,53 kW (1 l/min) / 0.71 hp (0.2642 gal/min)
  • Maximum Pressure (Pmax): 3,5 bar / 50.8 psi
  • Pump Type: Centrifugal
  • Tank Capacity: 3,05 l / 0.81 gal
  • IP Protection Rating: IP23S
  • Insulation class: F
  • Standard: EN 60974-1/-2, EN 61000-3-2
  • Dimensions (L x W x H): 547 x 212 x 265 mm / 21.5 x 8.3 x 10.4 in
  • Weight (including coolant): 16,4 kg / 36.2 lbs
